NANOlab™
NANOlab combines nanoliter dispensing, disposable tips, and flexible workflow setups to enable true walk-away protocols for dynamic genomics applications.
- Up to 8 Channels
- Configurable Dispensing including Fixed and Disposable Tips
- Nanoliter to Microliter Volumes (see options)
- Aspirate/Dispense and Bulk Dispense
- Motorized X, Y, Z Axes
- Mechanical Precision: X, Y, Z ≤ .03 μm (based on actuators microstepping)
- Dispense area of 500.38 x 400.05 mm
- Dispense onto Slides, Plates, Microfluidics
- Includes choice of default deck (For customized deck, see options)
- Automated Disposable Tip mount and ejection.
- Integrated Wash/Vacuum Station
- Ultrasonic Wash Station
- Integrated Humidity Chamber
- Advanced Vision System
- Vertical Camera
- ILD5000 In-Line Degasser
- PC Control Workstation with BioDot Studio Software include
* Dispense Volumes are Dispenser Technology Dependent
- Next-GenerationSequencing (NGS) sample prep
- PCR/qPCR setup
- Massspectrometry
- High Throughput Screening
- High Content Assays
- Synthetic Biology
- Single-cellgenomics and transcriptomics
- DNA/RNA extraction and normalization
nL to μL Dispensing Technologies
Nest Options
- Choose one from the following options:
- Mixed Deck: 8 Sites (MTP, slides, datum)
- Disposable Tip only Deck: 8 Sites (MTP, slides, datum)
- Ceramic Tip only Deck: 9 Sites (MTP, slides, datum)
Service & Support Packages
High Precision, Nanoliter-Scale, Freedom at Every Step.
NANOlab is a high-precision liquid handling system engineered for advanced genomics workflows that demand ultra-low-volume accuracy. Using disposable pipette tips to aspirate and dispense nanoliter-scale volumes, it delivers contamination-free operation and highly consistent results, ideal for NGS, PCR setup, library preparation, and other sensitive applications. Powered by advanced robotics and intuitive software, the platform supports high-throughput processing, flexible workflow configuration, and true walk-away automation. Its precise nanoliter control minimizes reagent consumption while safeguarding the quality and integrity of low-abundance or fragile samples.

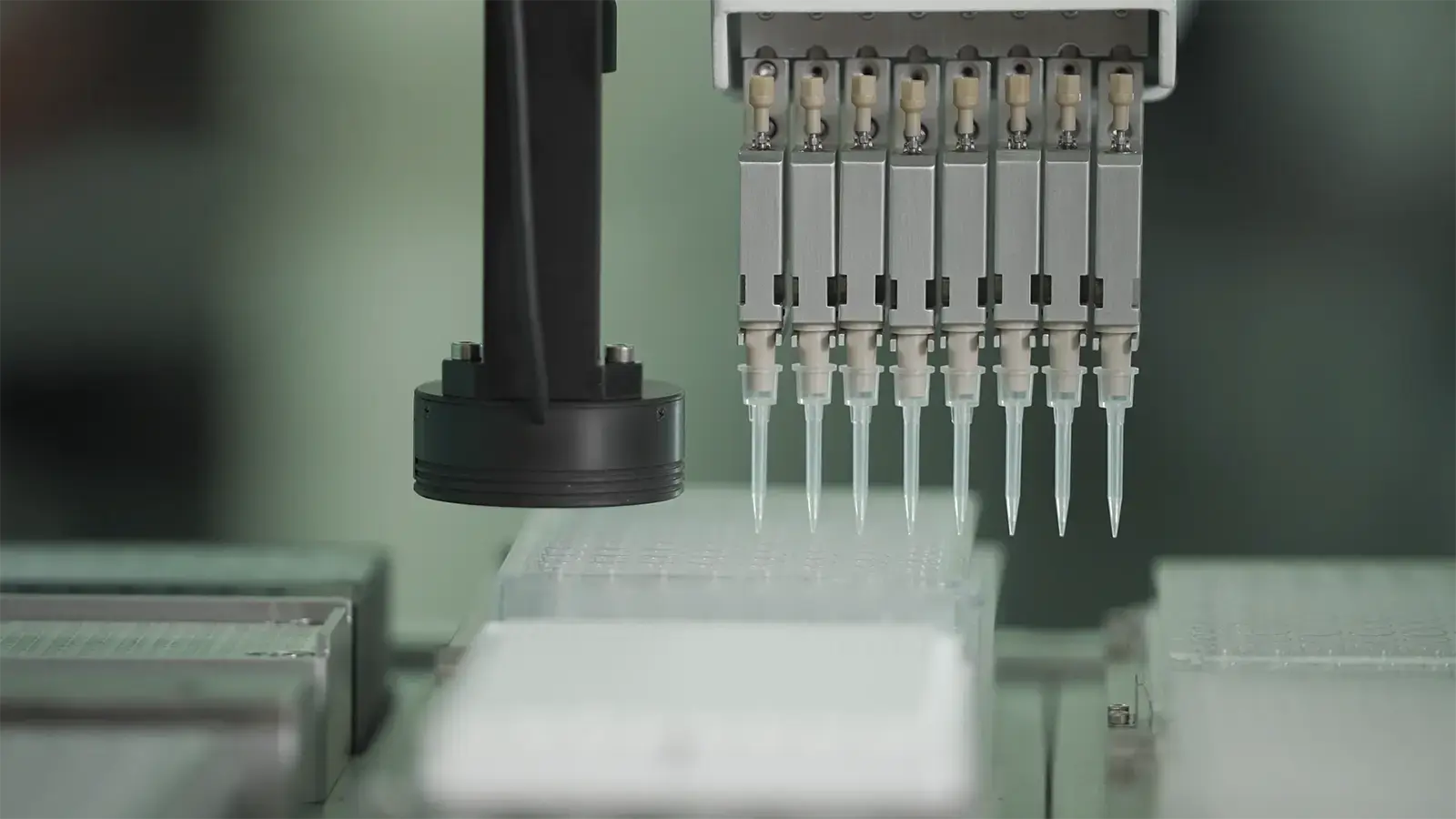

Disposable Tips
NANOlab makes nanoliter dispensing both accessible and practical for routine research workflows. Delivering high precision with cost-effective disposable tips and a highly configurable workflow architecture, the platform enables laboratories to increase consistency, reduce reagent consumption, and minimize contamination risk.
Disposable Tip Specifications
- Sterile & Non-Sterile versions
- 50 nL-2 μL at <10% CV
- Orifice Diameter: 190 μm
Dispensing Modes
- On-the-Fly
- Step-and-Repeat
Research-Driven Approach
NANOlab enters the diagnostic landscape with a more balanced, research-driven approach. It provides nanoliter-level precision without the typical constraints associated with this category. NANOlab supports a broad range of plates and consumables rather than locking users into proprietary formats. Instead of enforcing rigid workflows, it remains adaptable, from routine PCR setups to complex high-throughput protocols. Its disposable tips are intentionally priced for sustained, everyday use.
